Mery Engine Casting Set
Mery Engine Casting Set
Pickup available at 32000 Raymond Creek Road
Usually ready in 24 hours
Share

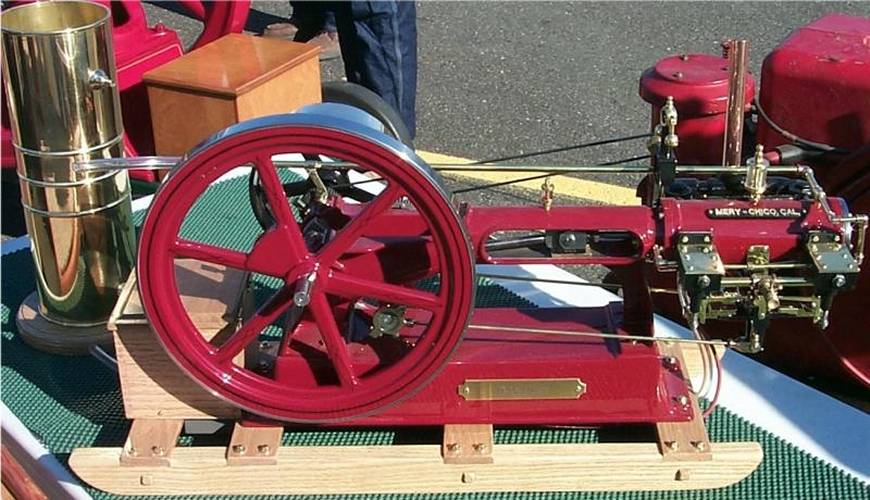

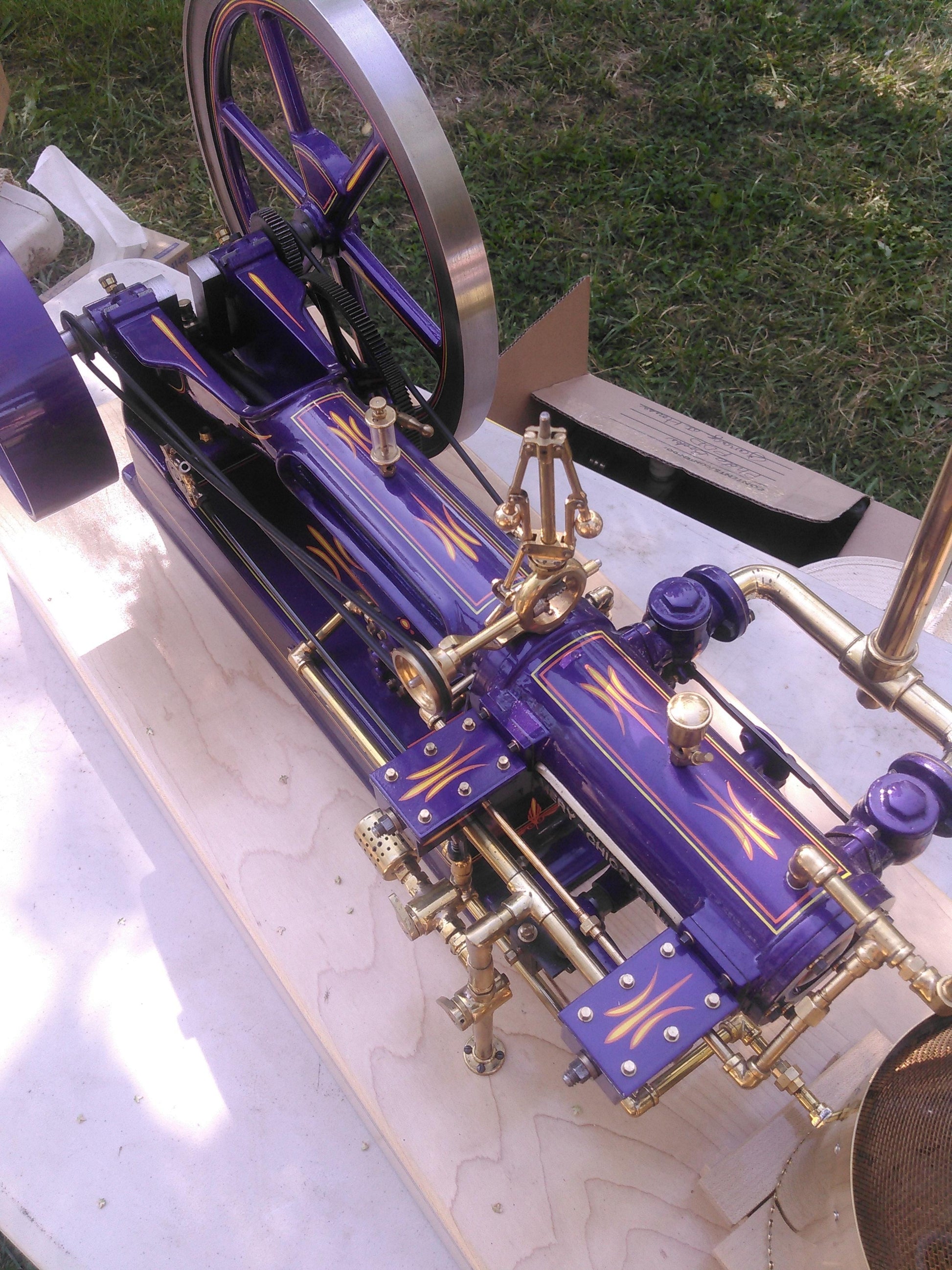

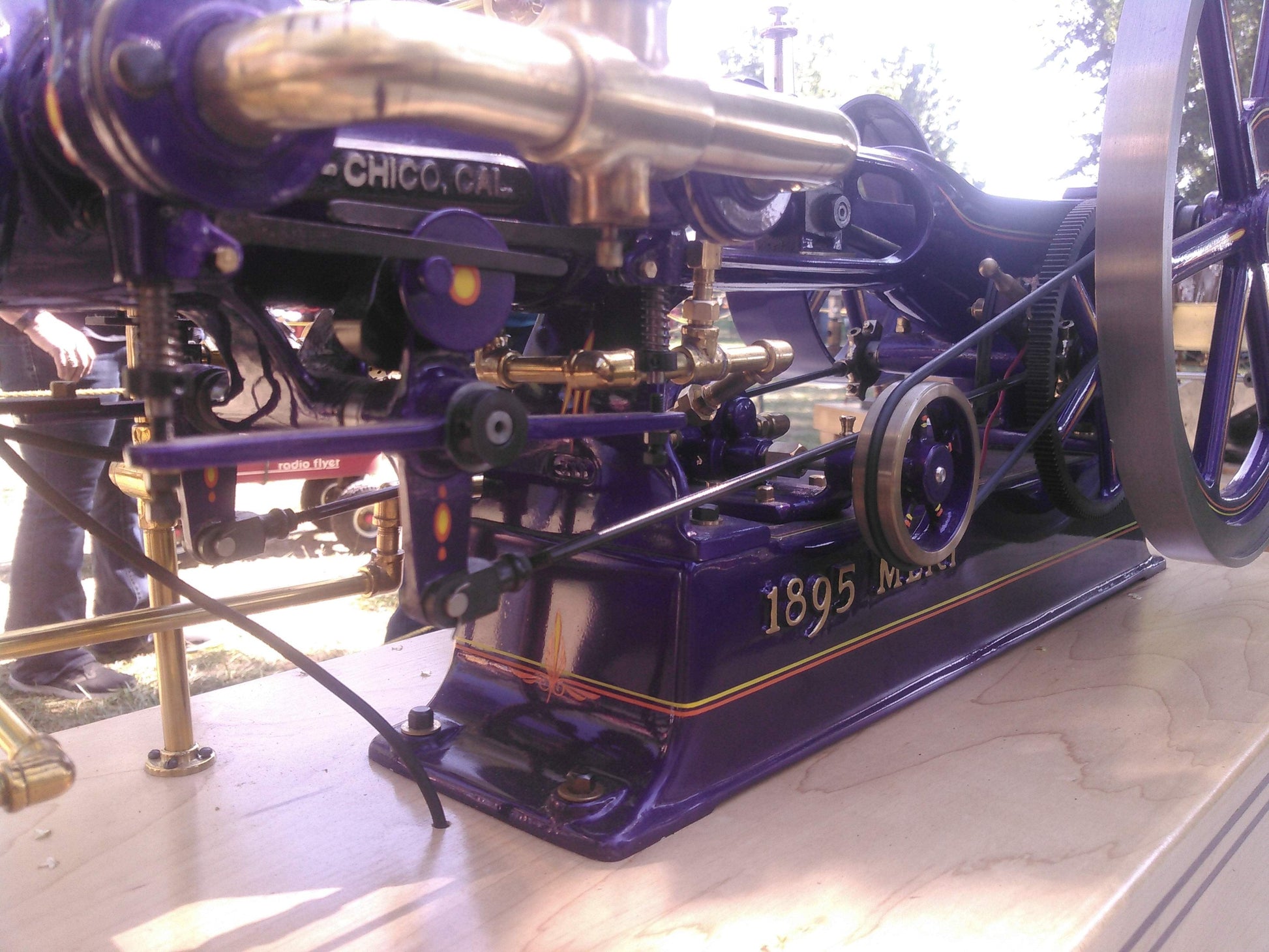

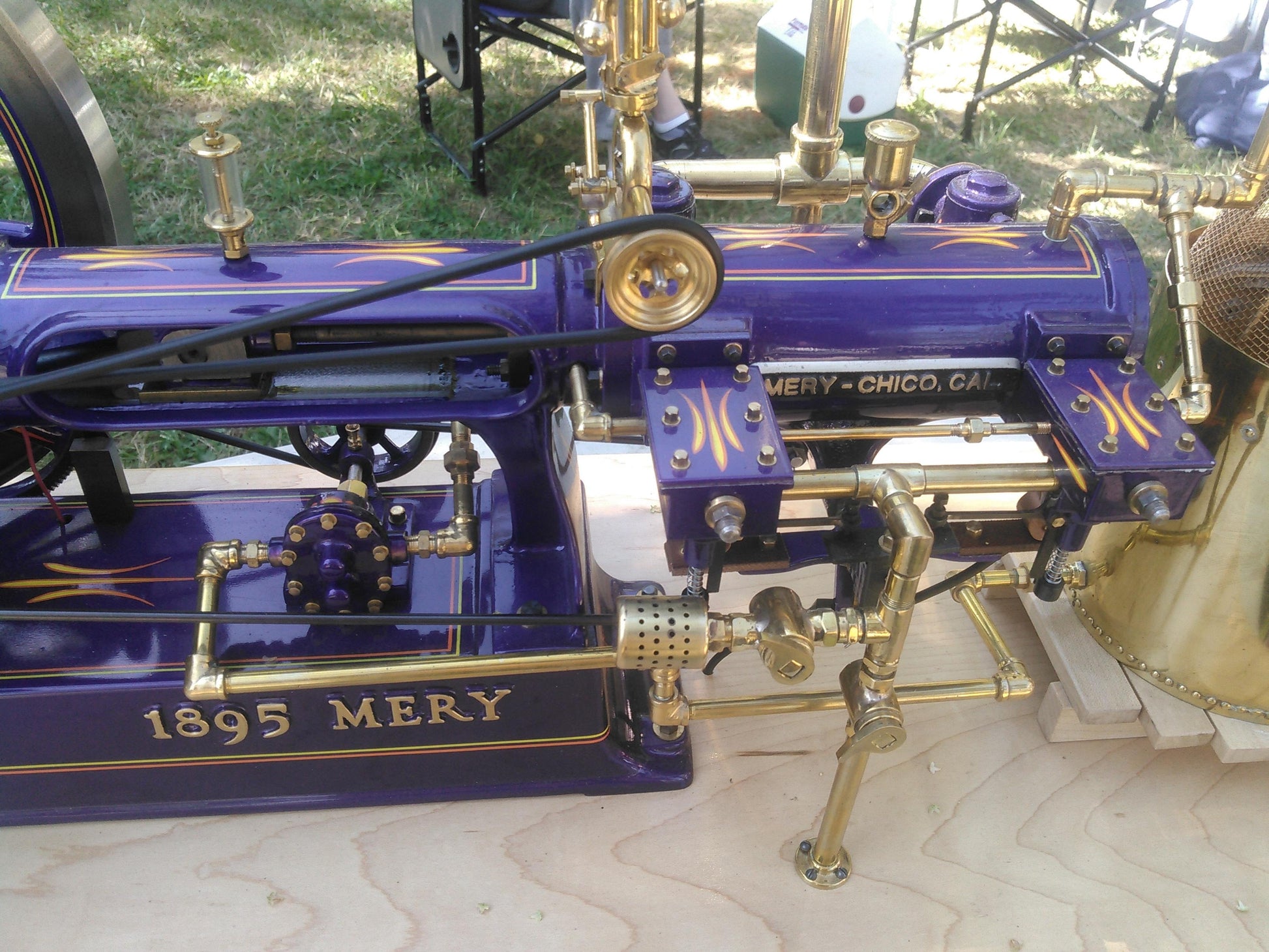

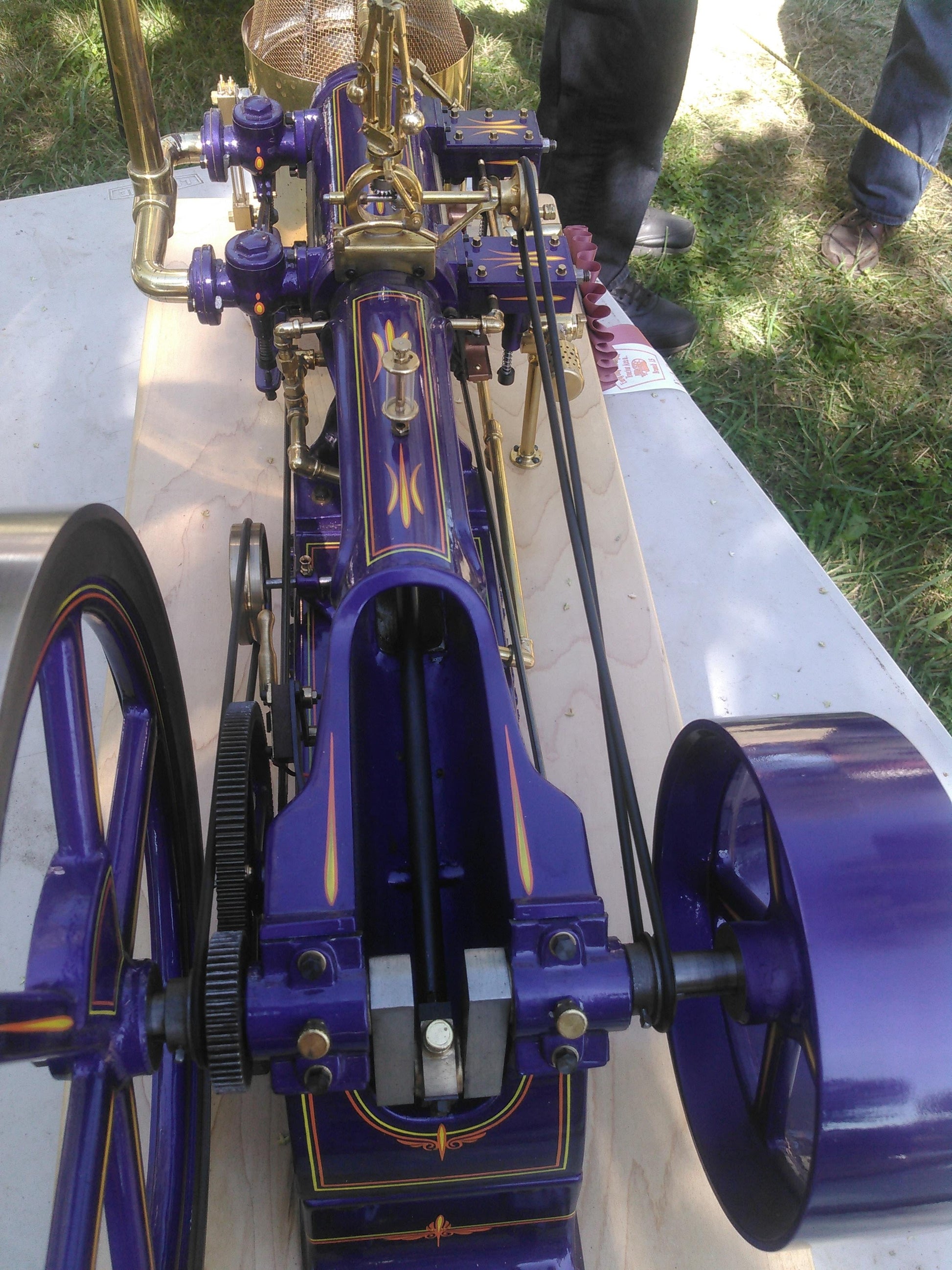

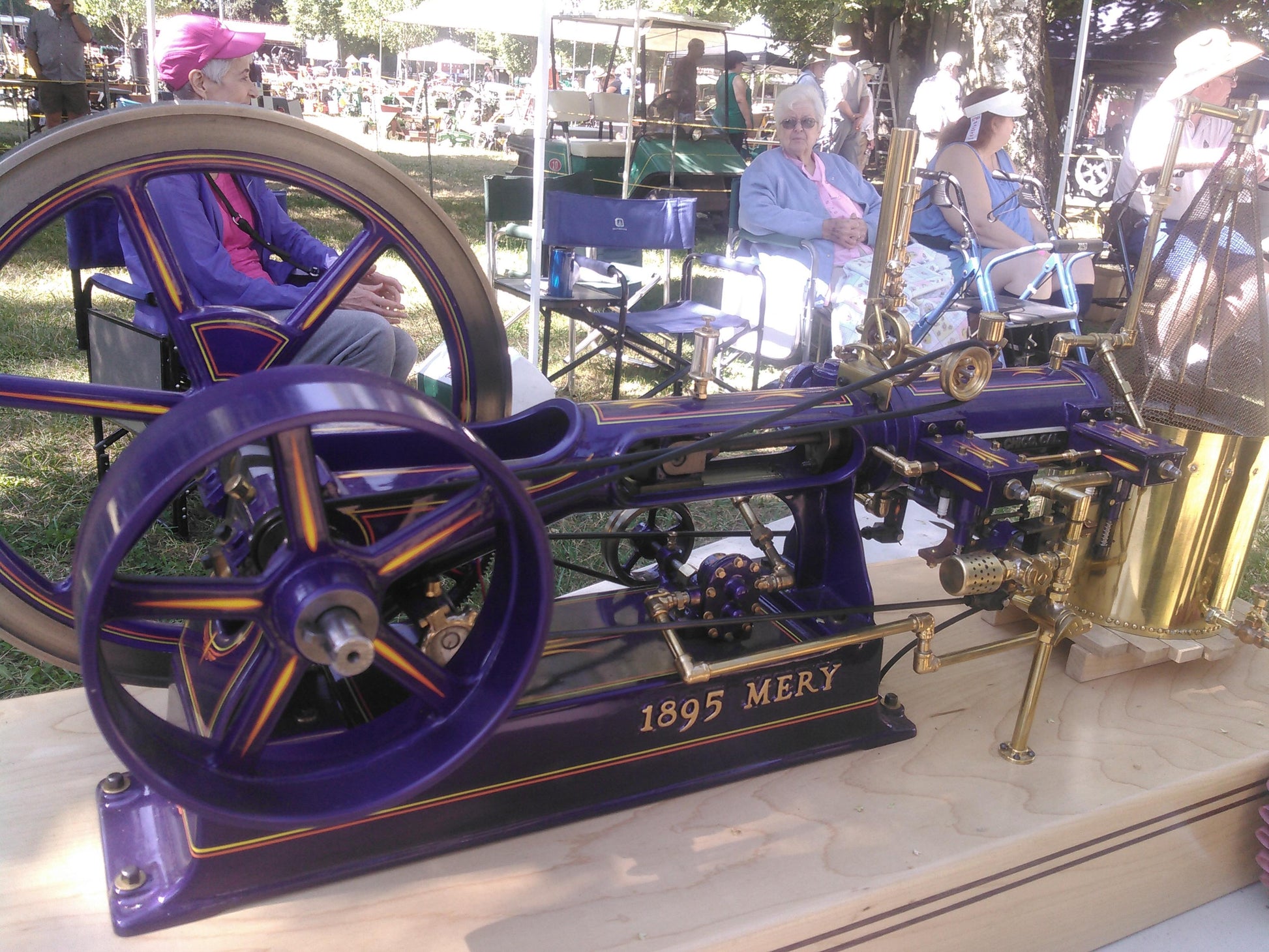

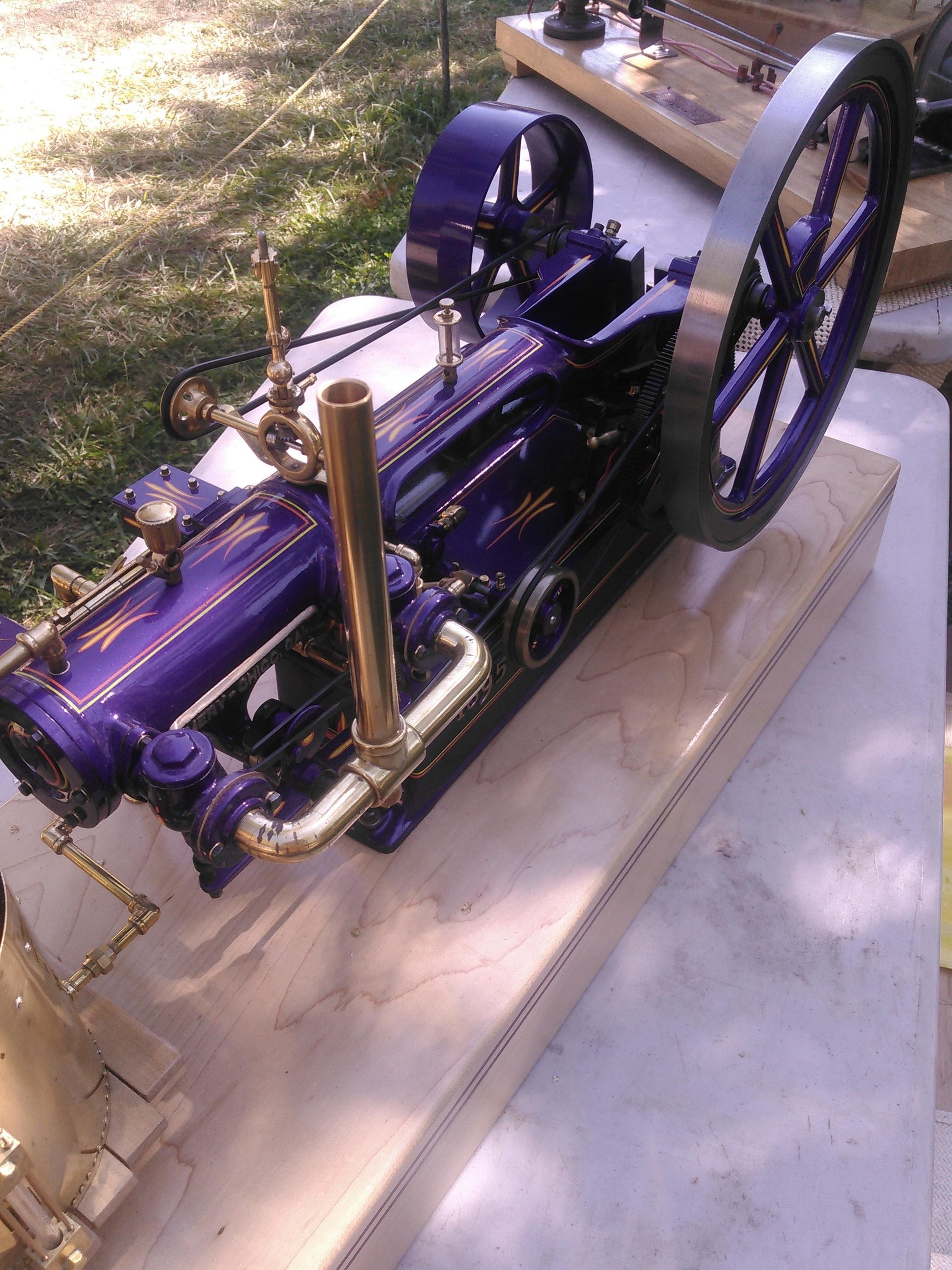

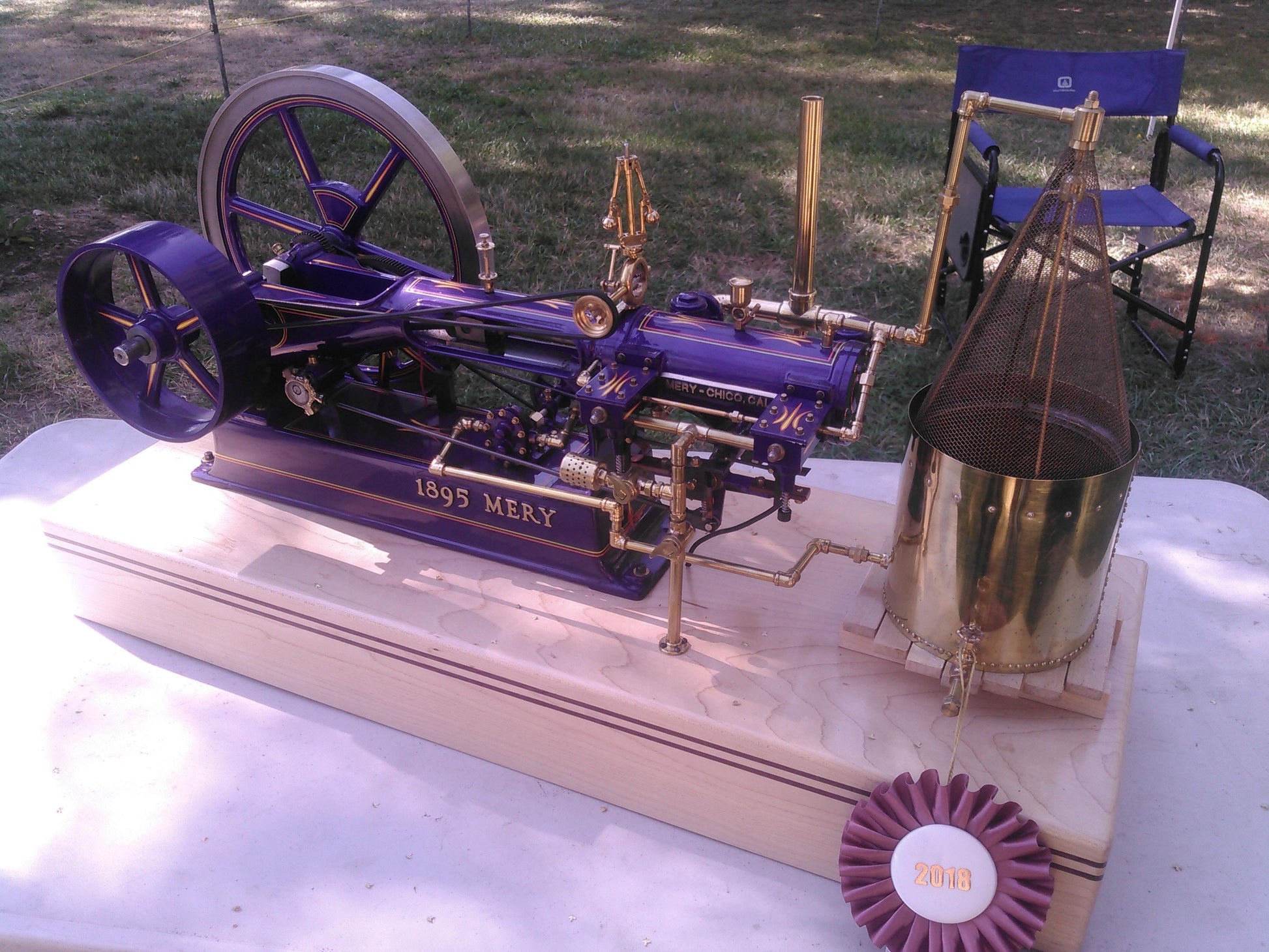

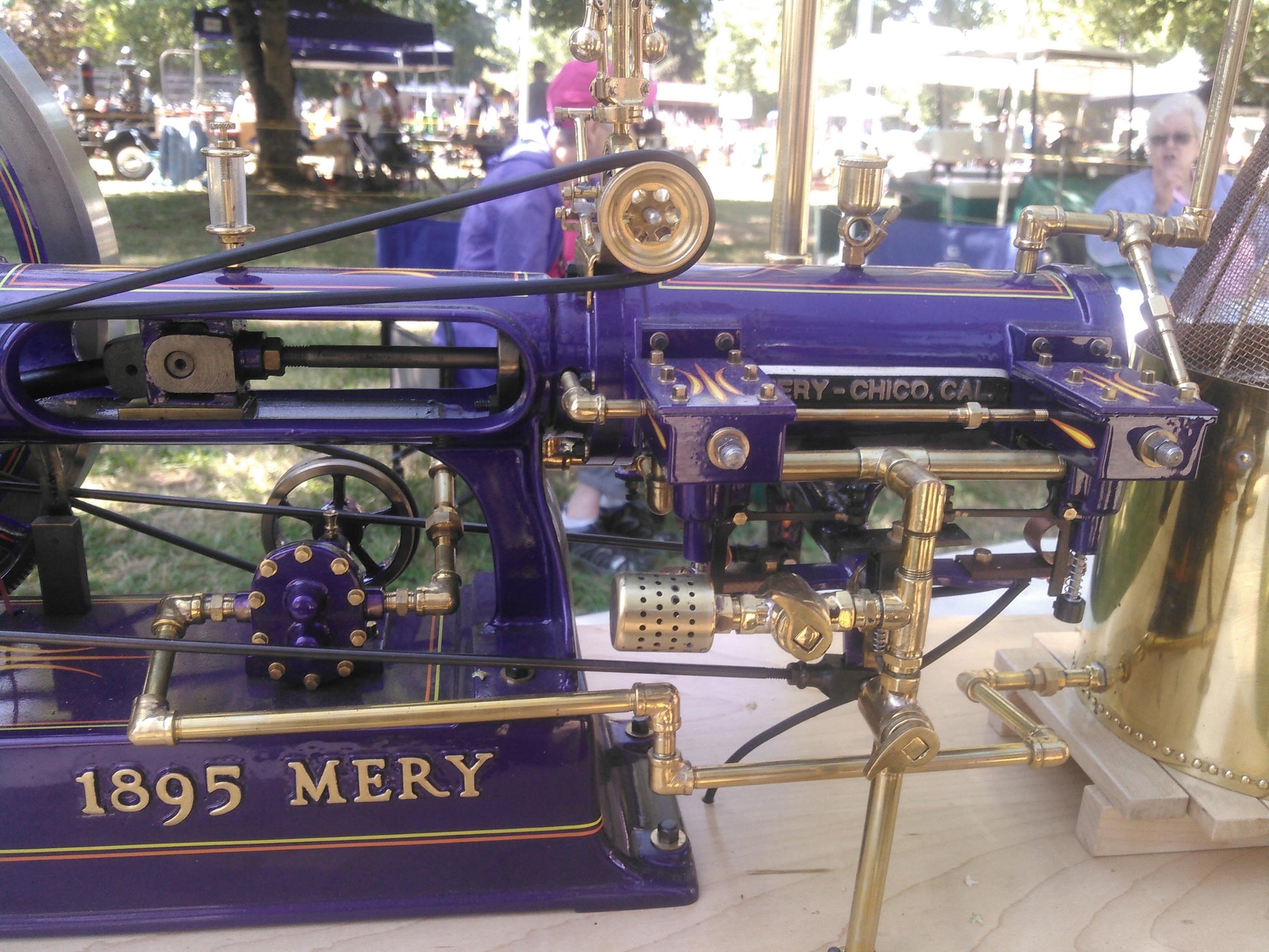

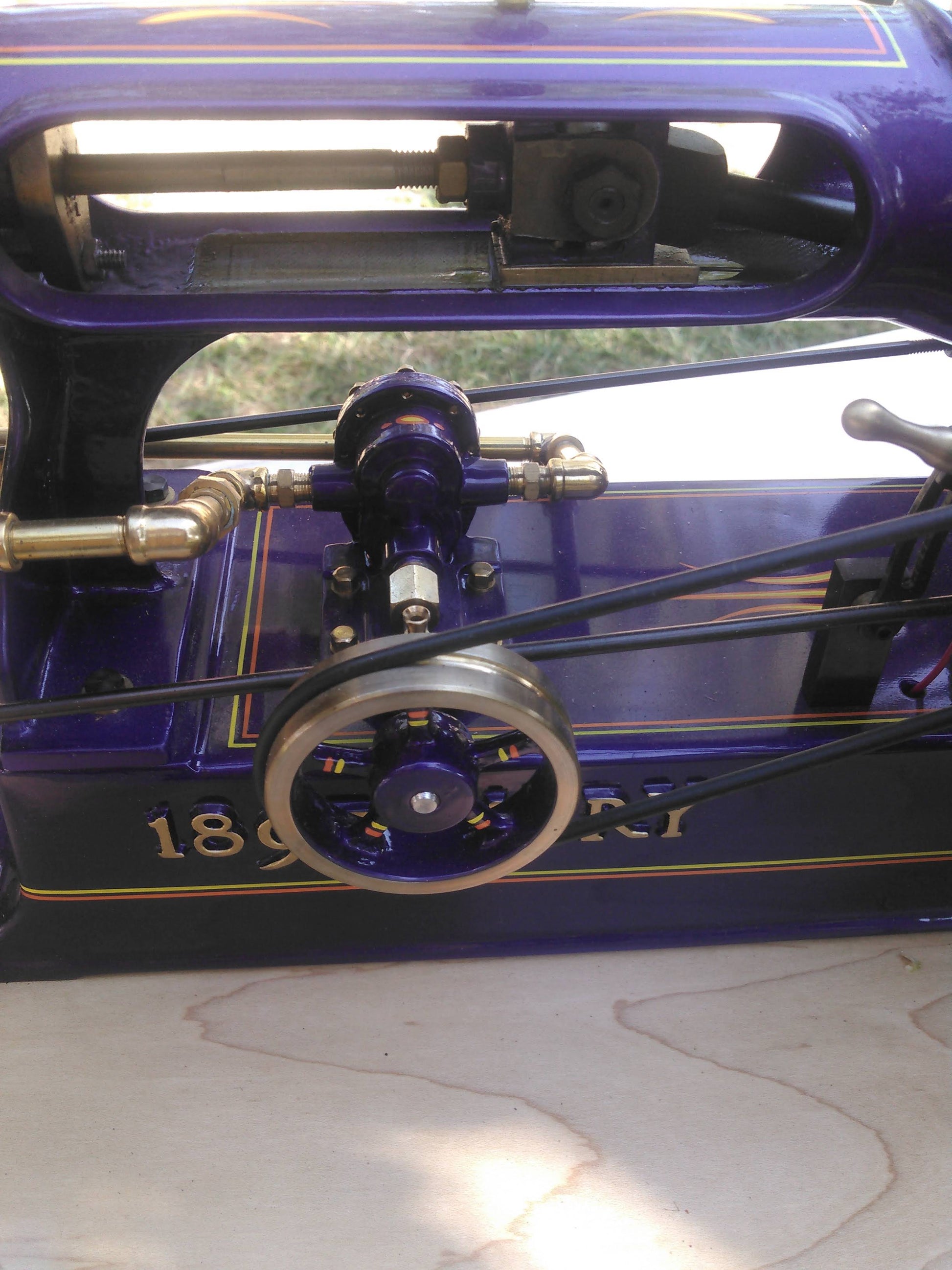

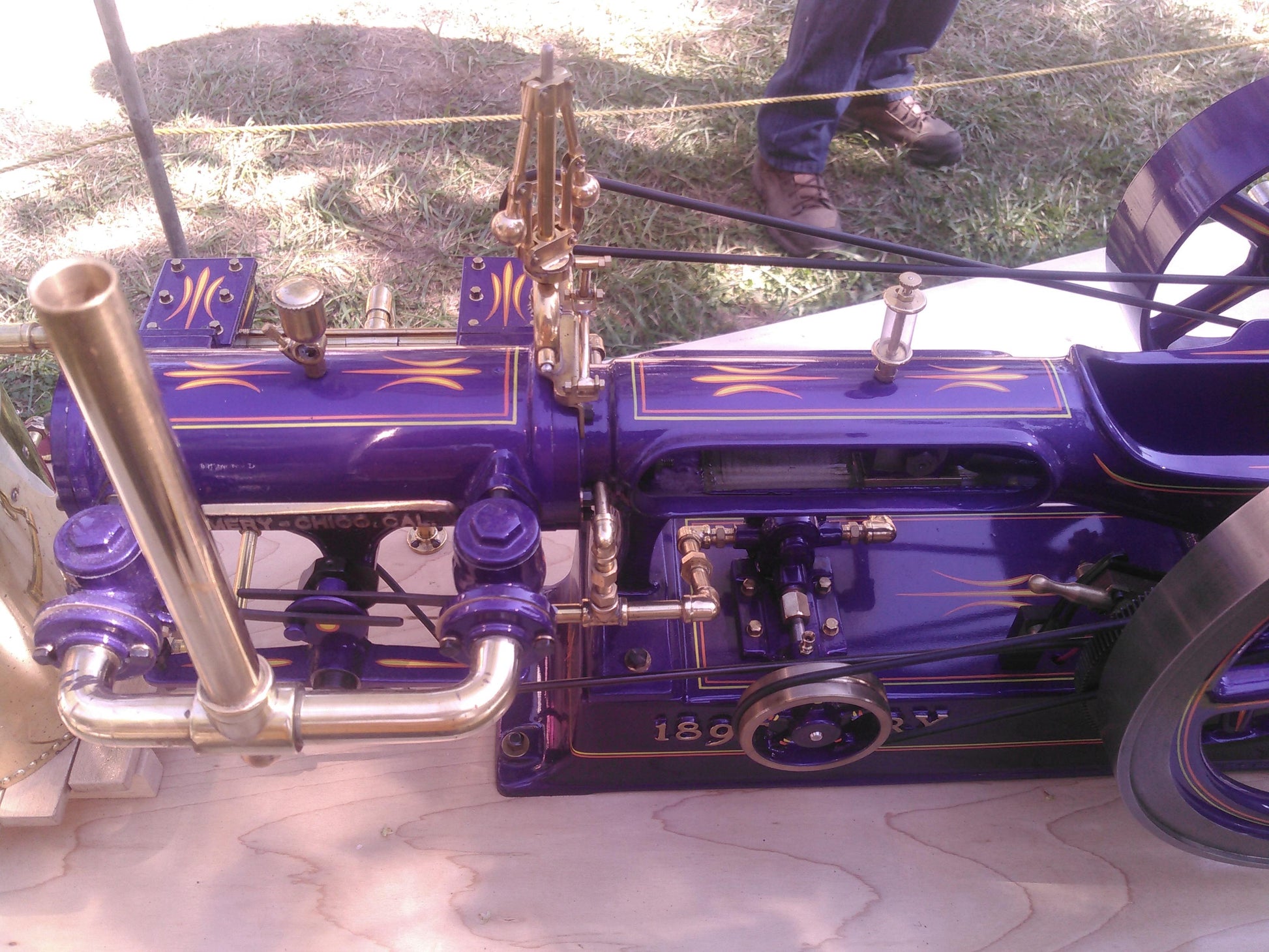

The Mery Explosive Engine is a truly unique and beautiful replica of the double acting gas engine patented by Michael Mery in 1895. Envision a spark plug and combustion chamber on both sides of a single piston - similar to a double acting steam engine. The Mery is a 6 cycle engine, achieving smooth power equivalent to a two cylinder engine, yet having only one cylinder. This set of engine castings comes with detailed drawings and comprehensive instructions allowing the builder to construct a beautiful model of this turn-of-the-century engine. The engine is intended to run on illuminating gas and must have cooling water circulated through it. A number of these replica engines have been built and run. The engine features a 1.25 inch bore, 3.25 inch stroke, a 10.5 inch flywheel, and is approximately 1/4 scale.

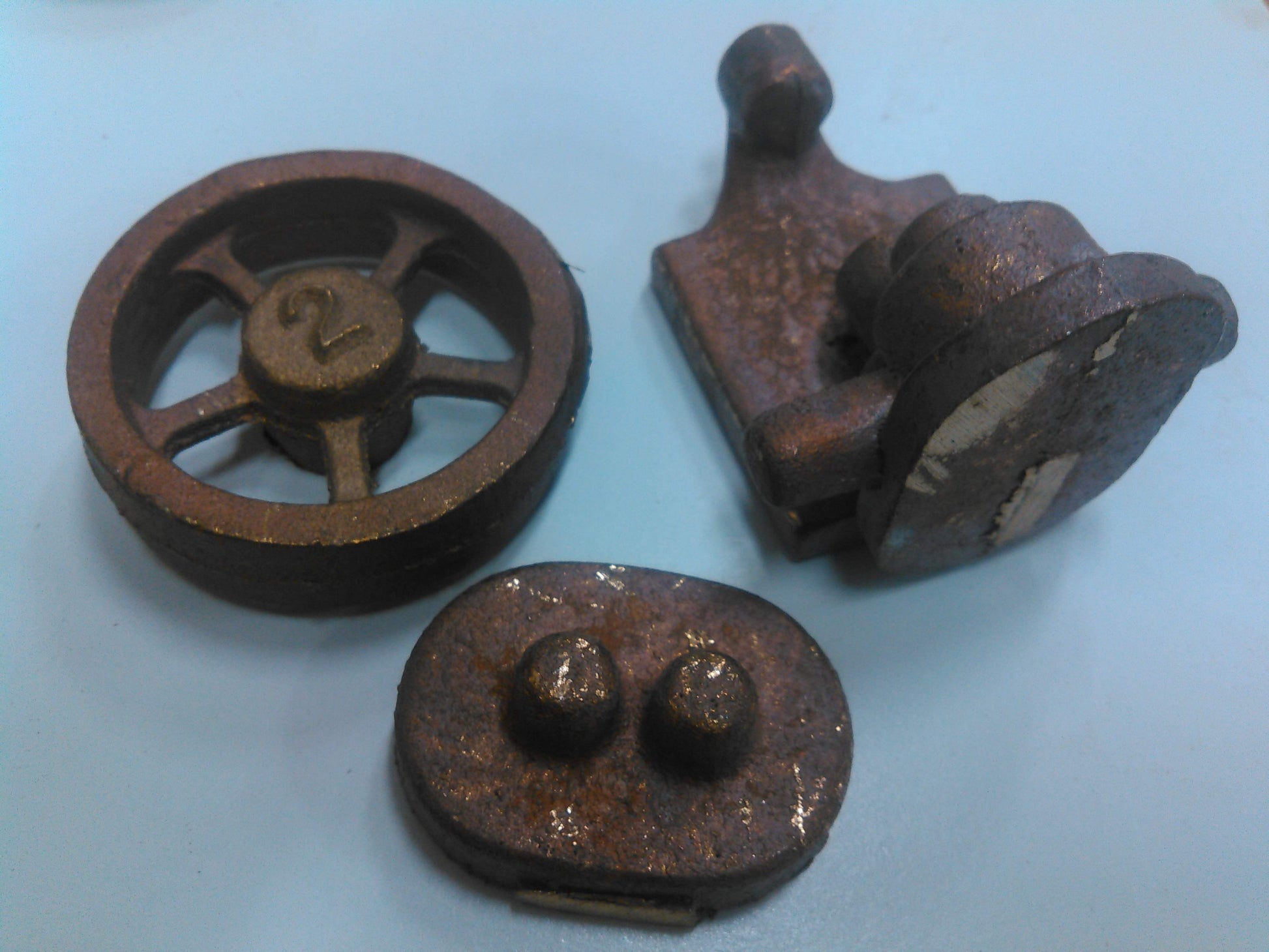

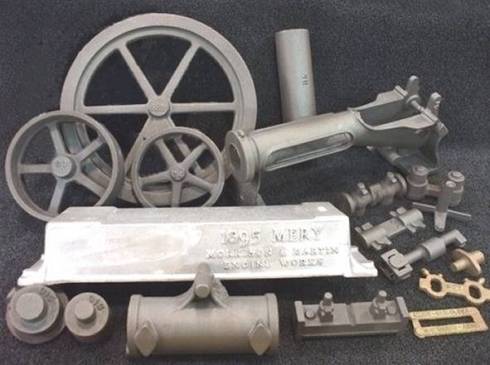

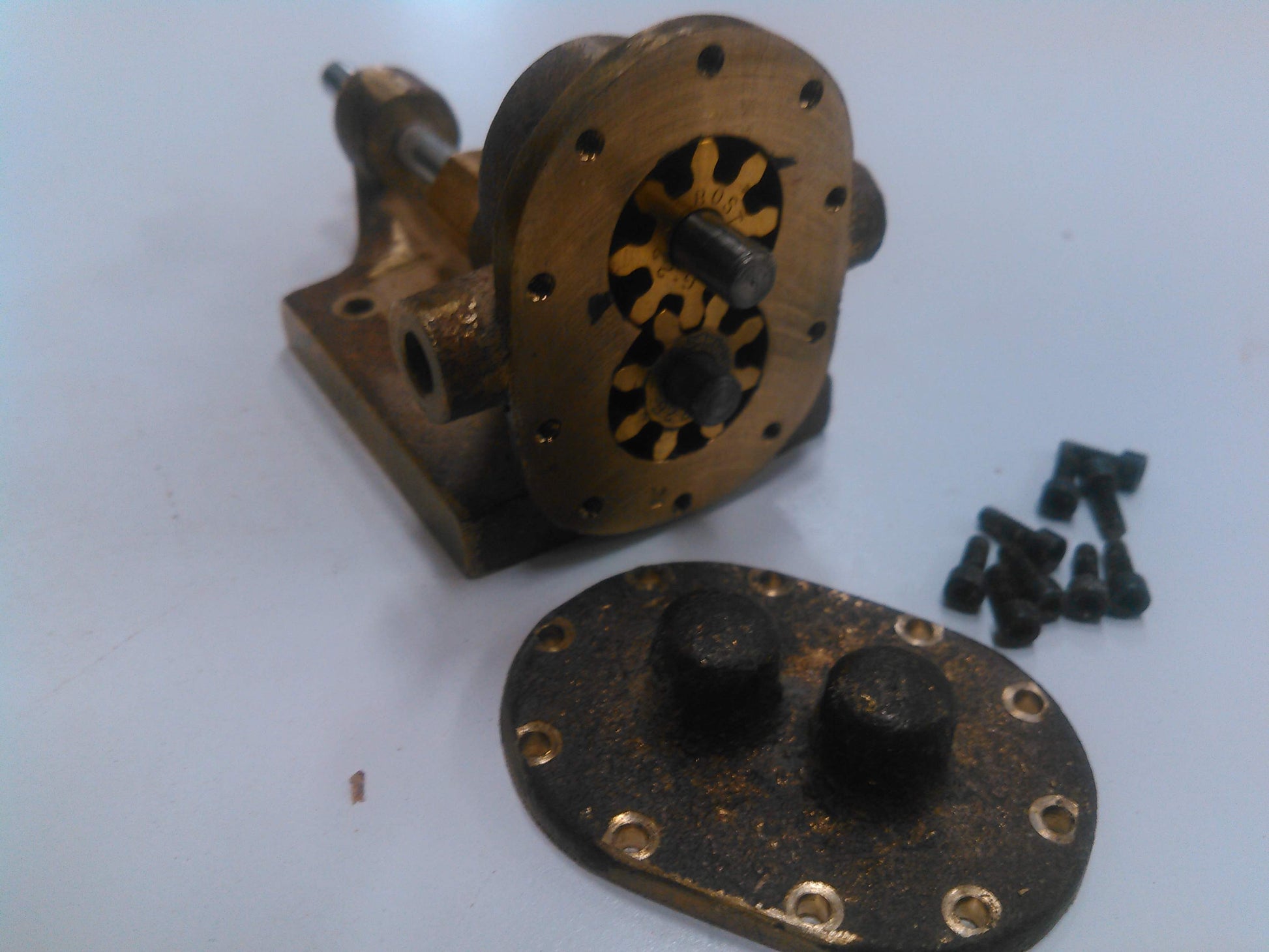

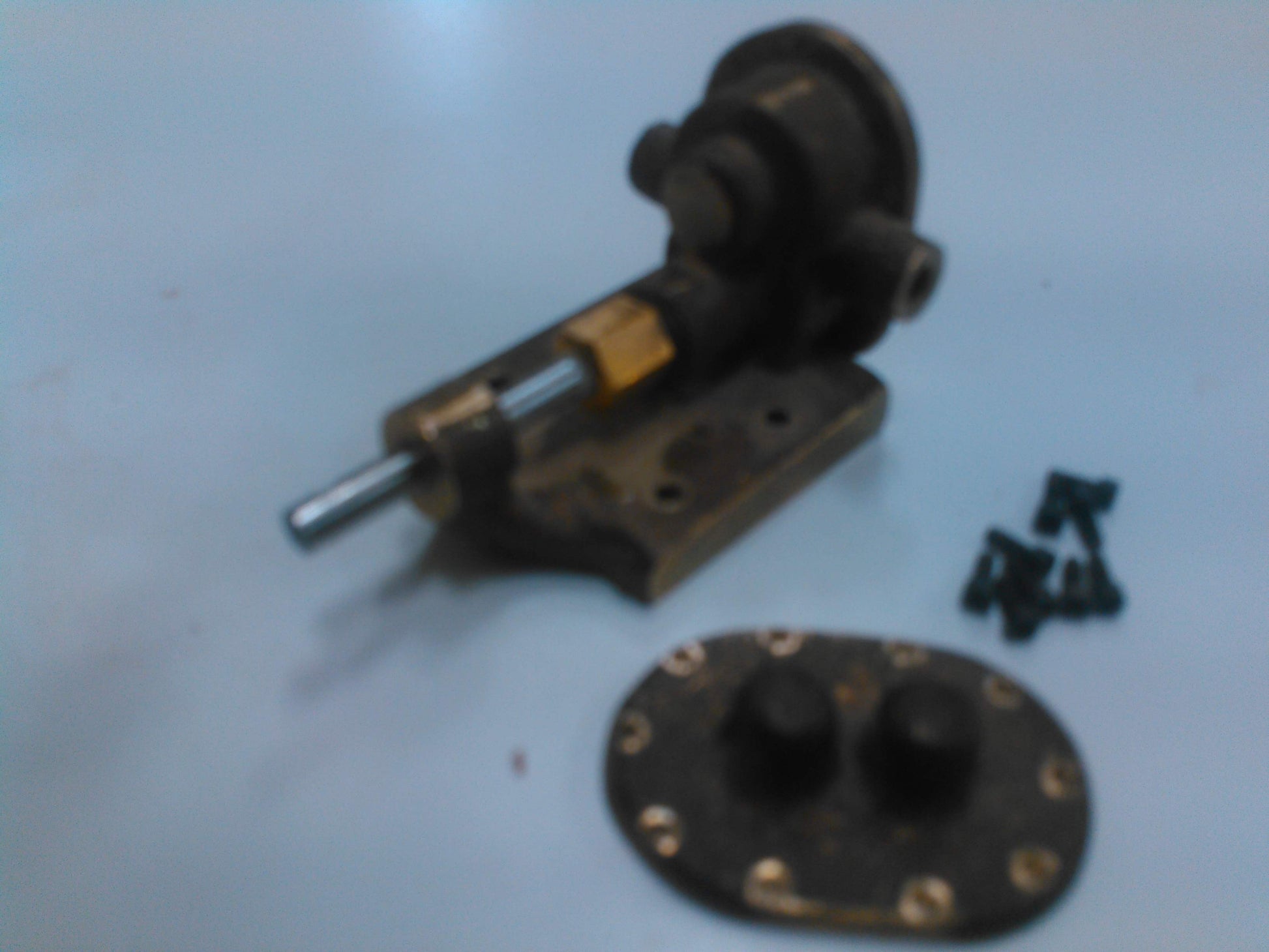

Included in the kit are complete, large scale drawings, 13 iron, 1 aluminum and 5 silicon bronze castings, including the name tags. Castings are designed with the machinist in mind:
- The body casting has machined positioning pads to assist in machining support legs parallel with crosshead bore;
- Parts which require a Left and Right are cast together so the casting can easily be held and aligned while machining and cutapart when completed;
- All iron castings are fully annealed and roto blasted to ensure ease of machining.Machine tools and machining experience are required to complete this truly handsome engine. Approx. 24"L x 7½"W x 12"H.
Printable Mery Order Form - Use this form to pay by check or buy individual parts

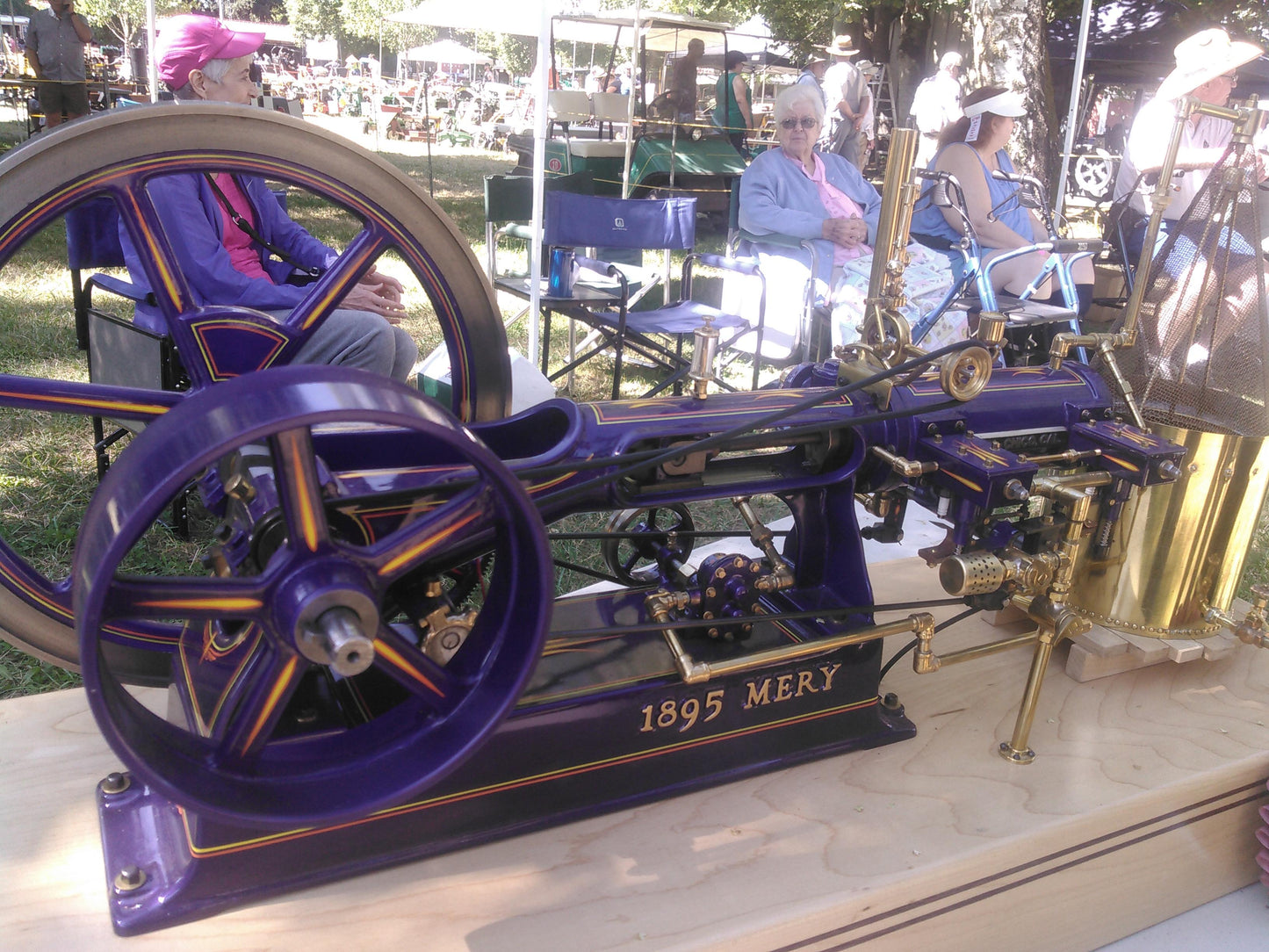

Mery Engine in Action!
